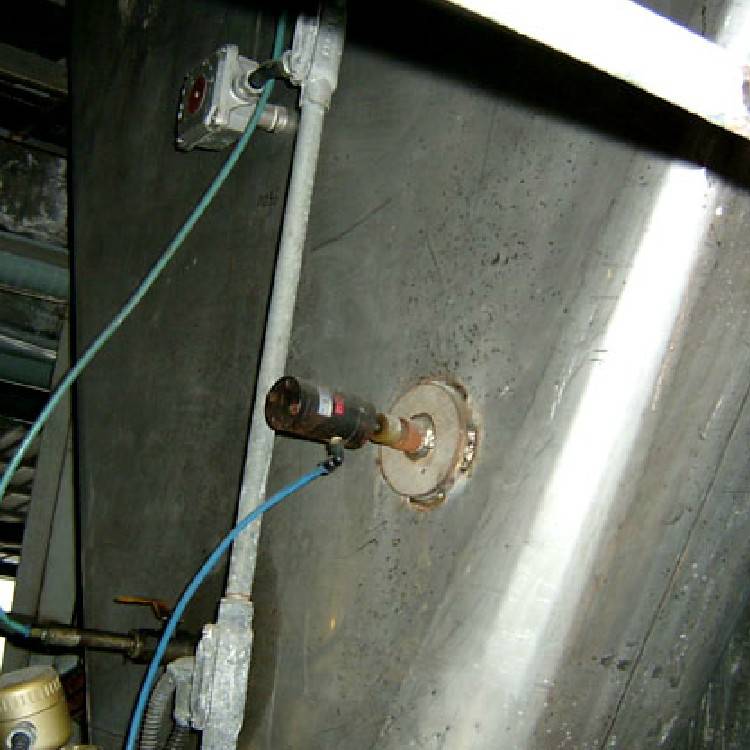

太倉市瀏河鎮榮光五金商行提供活塞振動器sevita5000韓國進口振動臺傳輸直線式倉壁振動器。

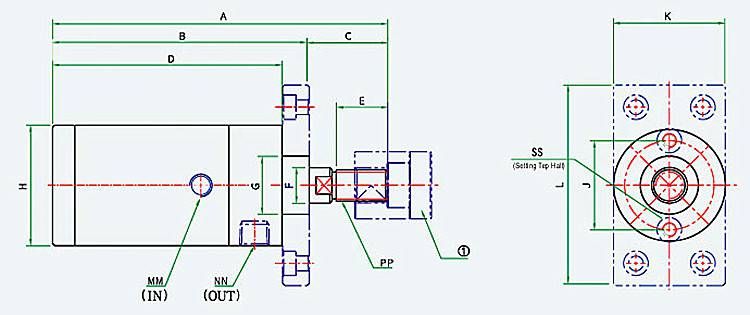

MODEL DIMENSION(unit:mm)

A
B
C
D
E
F
G
H
J
K
L
MM
NN
PP
SS

SEVITA-1000
54
42
12
35
8
5
9
22
15
20
36
M50.8P
M50.8P
M50.8P
M30.5P

SEVITA-1500
78
61
17
55
12
8

13

28
20
30
45
M50.8P
M50.8P
M61.0P
M40.7P

SEVITA-2000
98
76
22
68
15
10
18
36
26
40
60
PT 1/8
PT 1/8
M81.25P
M40.7P

SEVITA-3000
150
115
35
103
23
16
26
54
40
50
90
PT 1/8
PT 1/4
M141.5P
M61.8P

SEVITA-4000
201
155
46
139
30
20
35
72
54
80
120
PT 1/4
PT 1/4
M181.5P
M81.25P

SEVITA-5000
251
192
59
172
39
25
44
89
66
94
150
PT 3/8
PT 3/8
M242.0P
M101.5P

MODEL FORWARD FORCE(kgf) BACKWARD FORCE(kgf) VIBRATION
(RETURNS/min) AIR CONSUMPTION
(l/min) WEIGHT
(kg) DWG/
Down

MIN
4kgf/cm2

MAX
8kgf/cm2

MIN
4kgf/cm2

MAX
8kgf/cm2

MIN

MAX

NNA VOTTA RETURN
SPLITTING
/min

SEVITA-1000

3.1

6.3
2.4
4.7
4900
9500
0.011
75
0.1
Down

SEVITA-1500
7.1
14.1
5.1
10.1
3500
5000
0.016
80
0.21
Down

SEVITA-2000
12.6
25.1
9.4
18.9
2500
3500
0.034
120
0.5
Down

SEVITA-3000
28.3
56.5
20.2
40.5
1700
2500
0.056
140
1.7
Down

SEVITA-4000
50.3
100.5
37.7
75.4
1000
1800
0.106
190
4.1
Down

SEVITA-5000
78.5
157.1
58.9
117.8
800
1500
0.133
200
7.67
Down

吸盤振動器輕便振動器振動棒液壓振動器助流氣墊直線式外部式空氣錘振動臺卡車振動器落砂機

     聯系我們時請一定說明是在100招商網上看到的此信息，謝謝！
     聯系電話：17306183767，17306183767，歡迎您的來電咨詢！
     本文鏈接：http://jiewangda.cn/chanpin/136202884.html
     關鍵詞：氣動振動器 - 倉壁振動器 - 空氣錘 - 振動落砂氣錘 - 振動落砂機

MODEL	DIMENSION(unit:mm)
MODEL	A	B	C	D	E	F	G	H	J	K	L	MM	NN	PP	SS
SEVITA-1000	54	42	12	35	8	5	9	22	15	20	36	M5*0.8P	M5*0.8P	M5*0.8P	M3*0.5P
SEVITA-1500	78	61	17	55	12	8	13	28	20	30	45	M5*0.8P	M5*0.8P	M6*1.0P	M4*0.7P
SEVITA-2000	98	76	22	68	15	10	18	36	26	40	60	PT 1/8	PT 1/8	M8*1.25P	M4*0.7P
SEVITA-3000	150	115	35	103	23	16	26	54	40	50	90	PT 1/8	PT 1/4	M14*1.5P	M6*1.8P
SEVITA-4000	201	155	46	139	30	20	35	72	54	80	120	PT 1/4	PT 1/4	M18*1.5P	M8*1.25P
SEVITA-5000	251	192	59	172	39	25	44	89	66	94	150	PT 3/8	PT 3/8	M24*2.0P	M10*1.5P

MODEL	FORWARD FORCE(kgf)		BACKWARD FORCE(kgf)		VIBRATION (RETURNS/min)		AIR CONSUMPTION (l/min)		WEIGHT (kg)	DWG/ Down
MODEL	MIN 4kgf/cm2	MAX 8kgf/cm2	MIN 4kgf/cm2	MAX 8kgf/cm2	MIN	MAX	NNA VOTTA RETURN	SPLITTING /min	WEIGHT (kg)	DWG/ Down
SEVITA-1000	3.1	6.3	2.4	4.7	4900	9500	0.011	75	0.1	Down
SEVITA-1500	7.1	14.1	5.1	10.1	3500	5000	0.016	80	0.21	Down
SEVITA-2000	12.6	25.1	9.4	18.9	2500	3500	0.034	120	0.5	Down
SEVITA-3000	28.3	56.5	20.2	40.5	1700	2500	0.056	140	1.7	Down
SEVITA-4000	50.3	100.5	37.7	75.4	1000	1800	0.106	190	4.1	Down
SEVITA-5000	78.5	157.1	58.9	117.8	800	1500	0.133	200	7.67	Down
